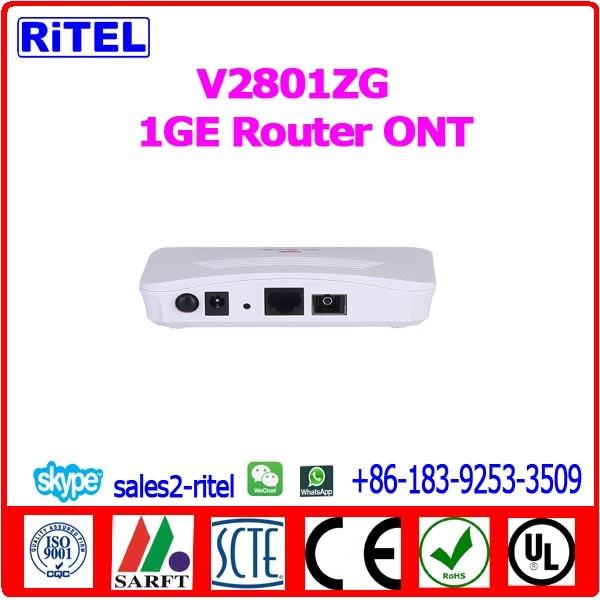

V2801ZG 1GE Router GPON ONU

Name: V2801ZG 1GE Router GPON ONU
Brand: RITEL or OEM
Price: 10.00 USD

Brand Name : RITEL or OEM

Model Number : V2801ZG 1GE Router GPON ONU

Certification : CE, UL, ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Price : $10.00~$100.00/PC

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 20000pcs per months

Delivery Time : Depends on quantity

Packaging Details : Carton, box

Contact Now

GPON V2801ZG 1GE Router ONU

Description

V2801ZG is GPON ONT designed for fulfilling FTTH ultra-broadband access request of home and SOHO users. It is based on the stable and mature GPON technology, which has high performance/price ratio, and the technology of layer 2/3 Ethernet switch as well. It is highly reliable and easy to maintain, with guaranteed QoS, and fully compliant to ITU-T G.984 GPON standards.

Features

> Plug and play, integrated auto-detecting, auto-configuration, and auto firmware upgrade, etc.
> Integrated OMCI remote configuration and maintenance function.
> Functions like transceiver diagnostic monitoring, transmitter disable, etc.
> Fully compatibility with OLT based on Broadlight/Broadcom chipset.
> Support port monitoring, port mirroring, port rate limiting, port SLA, etc.
> Support auto polarity detection of Ethernet ports (AUTO MDIX).
> Support NAT, Firewall function.

Specification

Technical items	Description
Uplink PON interface	1 GPON interface, SC single-mode/single-fibre, uplink 1.25Gbps, downlink 2.5Gbps
Downlink LAN interface	1* 10/100/1000Mbps Auto adaptive Ethernet interface, Full Duplex/Half Duplex, RJ45 connector
Wavelength	Tx 1310nm, Rx 1490nm
Indicators	5 indicators, for status of Power, LOS, REG, LINK, ACT
DC power supply	+12Vdc, 1A, external AC-DC adaptor
Power consumption	≤3W
Operating condition	Operating temp: -5~+45℃ Operating humidity:10~90%(non-condensed)
Storing condition	Storing temp: -30~+60℃ Storing humidity:10~90%(non-condensed)
Dimension	120mm78mm28mm(lengthwidthheight)
Net weight	0.2Kg
