Key Feature:
> Support DVB-C, DVB-T/T2, DVB-S/S2, DMB-T, ISDB-T, and ATSC-T RF Input
> Support LCD display for decoding video
> Various tuner standard available
> Support MPEG-2 & MPEG-4 video decoding
> Support AC3 pass through
> Re-multiplexer embedded
> Support Tuner, IP, ASI Input at the same time
> Support IP, ASI, Decoding output at the same time
> Support 8xSPTS/32xSPTS and1 IP MPTS output
> Support CAM card insert (CI)
> Support BISS descrambling
> Support CC (Closed Caption)
> Support Front Panel and NMS/SNMP network management and Web management

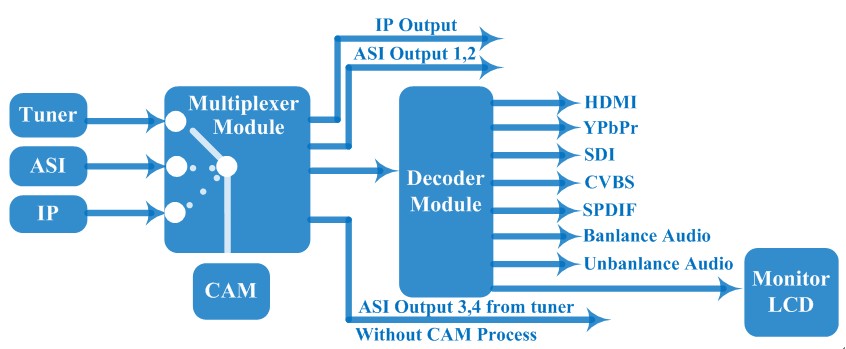

Blocks Diagram:
Specificaions:
| Input Interface | Tuner | 1 Tuner (DVB-C/DVB-S/ DMB-T/DVB-T/ DVB-S2/ ISDB-T/ATSC-T / DVB-T2 optional) DVB-C: 47 MHz~860 MHz, 16/32/64/128/256 QAM DVB-S: 950 MHz~2150 MHz, symbol rate: 2~45Mbauds DMB-T: 146MHz ~862 MHz, 6/7/8 M bandwidth DVB-T: 146MHz ~862 MHz, 6/7/8 M bandwidth DVB-S2: 950 MHz~2150 MHz, symbol rate: QPSK 1~45Mbauds, 8PSK 2~30Mbauds ISDB-T: 153 MHz ~862 MHz, 6/7/8M bandwidth ATSC-T: 54MHz~858MHz, 6M bandwidth DVB-T2: 44MHz ~1002 MHz, 6/7/8 M bandwidth |
| ASI | 1 ASI IN(support 188/204 package format) |
| IP | 1 IP over UDP, RTP/RTSP (100M, RJ45 Port) |
| Output | ASI Output | 2 ASI output(after multiplexer) |
| 2 ASI output(tuner input pass through) |
| IP output (UDP, RTP/RTSP) | 1 MPTS output |
| 8 SPTS output | NDS397x only |
| 32 SPTS output | NDS399x only |
| Video Output | 1xCVBS(BNC): 576i@25fps, 480i@29.97fps |
| 1xYPbPr(BNC): 1080i@25, 29.97, 30fps; 720p@50, 59.94fps |
| 1xHD/SD-SDI(BNC): 1080i@25, 29.97, 30fps; 720p@50, 59.94fps; 576i@25fps; 480i@29.97fps |
| 1 x HDMI: 1080i@25, 29.97, 30fps; 720p@50, 59.94fps |
| Audio Output | Stereo unbalanced audio: BNC interface Stereo balanced audio: XLR interface Digital audio: SPDIF |
| Video Decoding | MPEG-2, MPEG-4 (4:2:0) |
| Audio Decoding | MPEG1 layer 2, AC3, HE-AAC(v2), LC-AAC |
| NMS Port | Ethernet Port | 10/100M |
| Protocols | TS Over IP: UDP NMS: TCP/IP |
| System | Management: front panel (LCD + Keyboard); Network (NMS/SNMP); Web Management |
| English and Chinese interface conversion |
| Ethernet port for CPU/FPGA upgrade USB port for decoder upgrade |
| LCD Monitor for decoding video |
| Miscellaneous | Dimensions | 482mm*455mm*44.5mm ( L×W×H) |
| Approx weight | 3.2kg |
| Power | <20W(Max) |
| Temperature | 0~45℃(Operating), -20~80℃(Storage) |
